Product description

The HPE ProLiant DL360p Gen8 Server is ideal for enterprise applications. Industry leading performance, efficiency, capacity and reliability. Enterprise enhanced design for all workloads with versatility for future requirements. A space conscious 2 processor server with industry leading feature sets. Built to protect users investment and extend the life with reliability, accessibility and serviceability features designed in

Product features

Description
One of the following depending on the model

  • Entry processors2

    • Intel Xeon E5-2609 v2 (2.50 GHz, 4-core, 10MB, 6.4 GT/s QPI, 80 W) Processor

    • Intel Xeon E5-2603 v2 (1.80 GHz, 4-core, 10MB, 6.4 GT/s QPI, 80 W) Processor

  • Base processors3

    • Intel Xeon E5-2640 v2 (2.0 GHz/8-core/20MB/7.2 GT/s QPI/95 W, DDR3-1600, Hyper-Threading Technology (HT), Turbo2- 3/3/3/3/3/3/4/5)

    • Intel Xeon E5-2630 v2 (2.6 GHz/6-core/15MB/7.2 GT/s QPI/80 W, DDR3-1600, HT, Turbo2- 3/3/3/3/4/5)

    • Intel Xeon E5-2620 v2 (2.1 GHz/6-core/15MB/7.2 GT/s QPI/80 W, DDR3-1600, HT, Turbo2- 3/3/3/3/4/5)

    • Intel Xeon E5-2650L v2 (1.7 GHz/10-core/25MB/8.0 GT/s QPI/70 W, DDR3-1600, HT, Turbo2- 2/2/2/2/2/2/2/2/3/4)

    • Intel Xeon E5-2630L v2 (2.4 GHz/6-core/15MB/7.2 GT/s QPI/60-W, DDR3-1600, HT, Turbo2- 2/2/2/2/3/4)

  • Performance processors4

    • Intel Xeon E5-2697 v2 (2.7 GHz/12-core/30MB/8.0 GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 3/3/3/3/3/3/3/4/5/6/7/8) Processor

    • Intel Xeon E5-2695 v2 (2.4 GHz/12-core/30MB/8.0 GT/s QPI/115 W, DDR3-1866, HT, Turbo2- 4/4/4/4/4/4/4/4/5/6/7/8) Processor

    • Intel Xeon E5-2690 v2 (3.0 GHz/10-core/25MB/8.0 GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 3/3/3/3/3/3/3/4/5/6)

    • Intel Xeon E5-2680 v2 (2.8 GHz/10-core/25MB/8.0 GT/s QPI/115 W, DDR3-1866, HT, Turbo2- 3/3/3/3/3/4/5/6/7/8)

    • Intel Xeon E5-2670 v2 (2.5 GHz/10-core/25MB/8.0 GT/s QPI/115 W, DDR3-1866, HT, Turbo2- 4/4/4/4/4/4/5/6/7/8)

    • Intel Xeon E5-2667 v2 (3.3 GHz/8-core/25MB/8.0 GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 3/3/3/3/4/5/6/7)

    • Intel Xeon E5-2660 v2 (2.2 GHz/10-core/25MB/8.0 GT/s QPI/95 W, DDR3-1866, HT, Turbo2- 4/4/4/4/4/4/5/6/7/8)

    • Intel Xeon E5-2650 v2 (2.6 GHz/8-core/20MB/8.0 GT/s QPI/95 W, DDR3-1866, HT, Turbo2- 4/4/4/4/5/6/7/8)

    • Intel Xeon E5-2643 v2 (3.5 GHz/6-core/25MB/8.0 GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 1/1/1/1/2/3)

    • Intel Xeon E5-2637 v2 (3.5 GHz/4-core/15MB/8.0 GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 1/1/2/3)

  • Entry processors5

    • Intel Xeon E5-2609 (2.4 GHz/4-core/10MB/6.4 GT/s QPI/80 W)

    • Intel Xeon E5-2603 (1.8 GHz/4-core/10MB/6.4 GT/s QPI/80 W)

  • Base processors 2

    • Intel Xeon E5-2640 (2.5 GHz/6-core/15MB/7.2 GT/s QPI/95 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

    • Intel Xeon E5-2630 (2.3 GHz/6-core/15MB/7.2 GT/s QPI/95 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

    • Intel Xeon E5-2620 (2.0 GHz/6-core/15MB/7.2 GT/s QPI/95 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

    • Intel Xeon E5-2630L (2.0 GHz/6-core/15MB/8.0 GT/s QPI/60-W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

  • Performance processors3

    • Intel Xeon E5-2690 (2.9 GHz/8-core/20MB/8.0 GT/s QPI/135 W, DDR3-1600, HT, Turbo2- 4/4/4/5/5/7/7/9)

    • Intel Xeon E5-2680 (2.7 GHz/8-core/20MB/8.0 GT/s QPI/130 W, DDR3-1600, HT, Turbo2- 4/4/5/5/5/7/8/8)

    • Intel Xeon E5-2670 (2.6 GHz/8-core/20MB/8.0 GT/s QPI/115 W, DDR3-1600, HT, Turbo2- 4/4/5/5/6/6/7/7)

    • Intel Xeon E5-2667 (2.9 GHz/6-core/15MB/8.0 GT/s QPI/130 W, DDR3-1600, HT, Turbo2- 3/3/3/4/5/6)

    • Intel Xeon E5-2665 (2.4 GHz/8-core/20MB/8.0 GT/s QPI/115 W, DDR3-1600, HT, Turbo2- 4/4/5/5/6/6/7/7)

    • Intel Xeon E5-2660 (2.2 GHz/8-core/20MB/8.0 GT/s QPI/95 W, DDR3-1600, HT, Turbo2- 5/5/6/6/7/7/8/8)

    • Intel Xeon E5-2650 (2.0 GHz/8-core/20MB/8.0 GT/s QPI/95 W, DDR3-1600, HT, Turbo2- 4/4/5/5/5/7/8/8)

    • Intel Xeon E5-2650L (1.8 GHz/8-core/20MB/8.0 GT/s QPI/70 W, DDR3-1600, HT, Turbo2- 2/2/3/3/4/4/5/5)

    • Intel Xeon E5-2643 (3.3 GHz/4-core/10MB/8.0 GT/s QPI/130 W, DDR3-1600, HT, Turbo2- 1/1/2/2)

    • Intel Xeon E5-2637 (3.0 GHz/2-core/5MB/8.0 GT/s QPI/80 W, DDR3-1600, HT, Turbo2- 5/5)

One of the following depending on the model

  • 30MB (1 x 30MB) Level 3 (For twelve-core processors)

  • 25MB (1 x 25MB) Level 3 (For ten-core processors)

  • 20MB (1 x 20MB) Level 3 (For eight-core processors)

  • 15MB (1 x 15MB) Level 3 (For six-core processors)

  • 10MB (1 x 10MB) Level 3 (For quad-core processors)

  • 5MB (1 x 5MB) Level 3 (For dual-core processors)

  • Intel C600 series chipset

  • Intel E5-2600 processor family

  • Intel E5-2600 v2 processor family

Click here for more information regarding Intel chipsets .

  • Upgradeable to 2 processors (24 cores)6

  • Up to 24 Dual In-Line Memory Module (DIMM) slots available for higher memory capacity

  • Up to 8 Small Form Factor (SFF) hard drive bays or 4 Large Form Factor (LFF) or 10 SFF drive bay (Optional through CTO below)

  • FlexibleLOM slot for 1Gb or 10 GbE or QDR/FDR InfiniBand networking options

  • 2 PCIe 3.0 I/O Slots for additional communications and storage expansion

  • Redundant power supply

  • Optical drive bay (8 SFF/4 LFF)

HPE iLO (Firmware: HP iLO 4)

  • Advanced ECC

  • Online spare

  • Lock-Step mode

One of the following depending on the model

  • Type:

    HPE SmartMemory, DDR3 Registered DIMM (RDIMM), Load Reduced DIMM (LRDIMM) or Unbuffered DIMM (UDIMM) memory

  • DIMM Slots available:

    24 (12 DIMM slots per processor / 4 channels per processor / 3 DIMMs per channel)

  • Maximum capacity (LRDIMM):

    768GB (24 x 32GB @ 1066 MHz)

  • Maximum capacity (RDIMM):

    384GB (24 x 16GB @ 1333 MHz)

  • Maximum capacity (UDIMM):

    128GB (16 x 8GB @ 1333 MHz)

  • Maximum capacity (HDIMM):

    384GB (24 x 16GB @ 1333 MHz)

One of the following depending on the model
HPE ProLiant Gen8 servers offer a new networking technology - flexible network technology. The HPE ProLiant DL360p Gen8 server offers the customer the choice of 1Gb and/or 10Gb networking solutions.

  • Entry models:

    HPE Ethernet 1Gb 4-port 331FLR adapter

  • Base models:

    HPE Ethernet 1Gb 4-port 331FLR adapter

  • High performance models:

    • HPE Ethernet 10Gb 2-port 530FLR-SFP+ adapter

    • HPE Ethernet 1Gb 4-port 331FLR adapter

    • HPE Ethernet 10Gb 2-port 533FLR adapter

  • Energy star certified models:

    HPE Ethernet 1Gb 4-port 331FLR adapter

One of the following depending on the model

  • Entry models:

    HPE Smart Array P420i/ZM (RAID 0/1/1+0)

  • Base models:

    HPE Smart Array P420i/1GB with Flash-Based Write Cache (FBWC) (RAID 0/1/1+0/5/5+0)

  • High performance models:

    HPE Smart Array P420i/2GB with FBWC (RAID 0/1/1+0/5/5+0)

  • Energy Star models:

    • HPE Smart Array P420i/1GB FBWC (RAID 0/1/1+0/5/5+0)

    • HPE Smart Array P420i/ZM (RAID 0/1/1+0)

  • Diskette drive:

    None

  • Optical drive:

    Optional DVD-ROM, DVD-RW

  • Hard drives:

    None ship standard

  • Hard drive bays:

    • 8 SFF Drive bays total with optical drive bay

    • Optional:

      • 4 LFF Bays with optical drive bay

      • 10 SFF Bays without optical

20.0TB
Hot-Plug SFF SATA
10 x 2TB
32.0TB
Hot-Plug LFF SATA
4 x 8TB (With optional LFF drive cage)
19.2TB
Hot-Plug SFF SATA SSD
10 x 1.6TB
6.4TB
Hot-Plug LFF SATA SSD
4 x 1.6TB (With optional LFF drive cage)

  • Serial: 1

  • Video: 2 (1 Front, 1 back) not active simultaneously8

  • FlexibleLOM network ports: Some models come standard with 4 x 1GB ports while others come with 2 x 10GB ports.

  • HPE iLO remote management network port: 1Gb Dedicated

  • SD Slot: 1 internal secure9

  • USB 2.0 Ports: 7 total: 4 rear, 2 front, 1 internal (Secure)

  • ACPI 2.0b Compliant

  • PCIe 3.0 Compliant

  • PXE Support

  • WOL Support

  • Microsoft logo certifications

  • USB 2.0 Compliant

Integrated Matrox G200 video standard
HPE iLO 4 On system management memory

  • 16MB Flash

  • 256MB DDR 3 with ECC (112MB After ECC and video)

One of the following depending on the model

  • 6 Fan modules ship standard in 1 processor models

  • 8 Fan modules ship standard in 2 processor models

  • The HPE ProLiant DL360p Gen8 will support up to 8 fans with fan redundancy built in. One fan rotor failure will place server in degraded mode but fully functional. Two fan rotor failures could provide warning and imminent server shutdown

One of the following depending on the model

  • 1U Rack form factor

  • 8 SFF And 10 SFF drive bay version (H x W x L): 4.32 x 43.47 x 69.85 cm (1.7 x 17.11 x 27.5 in)

  • 4 LFF Drive bay version (H x W x L): 4.32 x 43.47 x 74.67 cm (1.7 x 17.11 x 29.5 in)

NOTE:
    • HT indicates that the processor model supports Intel Hyper-Threading Technology.
    • Turbo indicates the maximum potential frequency increment when using Intel Turbo Boost Technology, with 8, 7, 6, 5, 4, 3, 2 or 1 core(s) active.
    • DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.
    • Up to 2 processors supported. Mixing different processor models is not supported.
    • For the Intel C600 Chipset E5-2600 Series, the letter preceding the model number indicates the Product Line (E3, E5, E7); 2600x, 2 = number of CPUs in a Node, 6 is socket/segment designation, 00 = Processor SKU, and x = L for low power SKUs.
  2. All support up to 1333 MHz DDR3 memory speeds.
  3. All support up to 1600 MHz DDR3 memory speeds.
  4. All support up to 1866 MHz DDR3 memory speeds.
  5. All support up to 1066 MHz memory speeds.
  6. Processor upgrade available from Intel Xeon Processors E5-2600 to E5-2600 v2. Contact HPE Technology Sales, local HPE Re-seller, or reference the following Customer Advisory regarding critical details before upgrading. An explanation of requirements and limitations are provided.

    Click here to access SUPPORT COMMUNICATION - CUSTOMER ADVISORY .

    • HPE memory from previous generation servers are not qualified or warranted with this HPE ProLiant Server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen8.

      Click here for additional information on HPE SmartMemory.

    • LRDIMM, RDIMM, UDIMM and HDIMMs are all distinct memory technologies and cannot be mixed within a server. The majority of ProLiant Gen8 servers support RDIMM, UDIMM and LRDIMM.

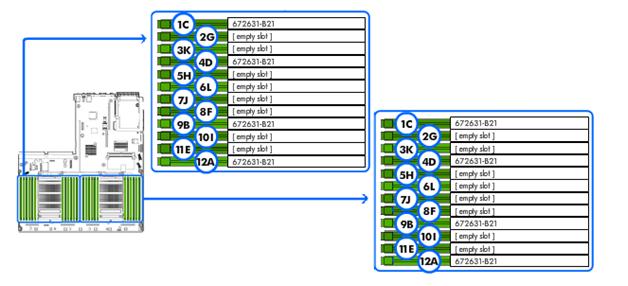

    • If only one processor is installed, only 12 DIMM slots are available. When populating with two processors 24 DIMM slots are available. For maximum speed on some memory options on 16 DIMM slots may be populated.
    • When using HDIMMs, 12 DIMMs per processor are required.
    • Depending on the memory configuration and processor model, the memory speed may run at 1866 MHz, 1600 MHz, 1333 MHz, or 1066 MHz.

      Click here to access HPE Server Memory Configurator.

  8. Front interface is a Mini-video connector and requires Front Video Adapter Kit (PN 655915-B21).
  9. The SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered.
  10. The processor option kit contains 2 additional fan modules, when upgrading from a 1 processor to two processor models.

Software overview

Description
Operating System (OS) and virtualization software support for ProLiant servers

  • Microsoft Windows Server

  • Canonical Ubuntu

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • Oracle Linux

  • VMware

  • Citrix XenServer

NOTE:Click here to visit the Support Matrix for more information on HPE's Certified and Supported ProLiant Servers for OS and Virtualization Software and the latest listing of software drivers available for the server.

Link to product specification

Click here to view the HPE ProLiant DL360p Gen8 Server specifications page .

Link to driver, firmware, software and manuals

Click here to access the driver, firmware, software and manuals for HPE ProLiant DL360p Gen8 Server.

Link to warranty information

Click here to check the warranty status.

Click here for detailed information regarding worldwide limited warranty and technical support.

Link to QuickSpecs

  • Click here to see the HPE ProLiant DL360p Gen8 Server series Worldwide QuickSpecs in html format.

  • Click here to see the HPE ProLiant DL360p Gen8 Server series Worldwide QuickSpecs in pdf format.

  • Click here to access the QuickSpecs homepage, which provides access to the QuickSpecs for other regions/countries.

Product related documents

Click here to view the product related documents for HPE ProLiant DL360p Gen8 Server .
